HA-P024

Description

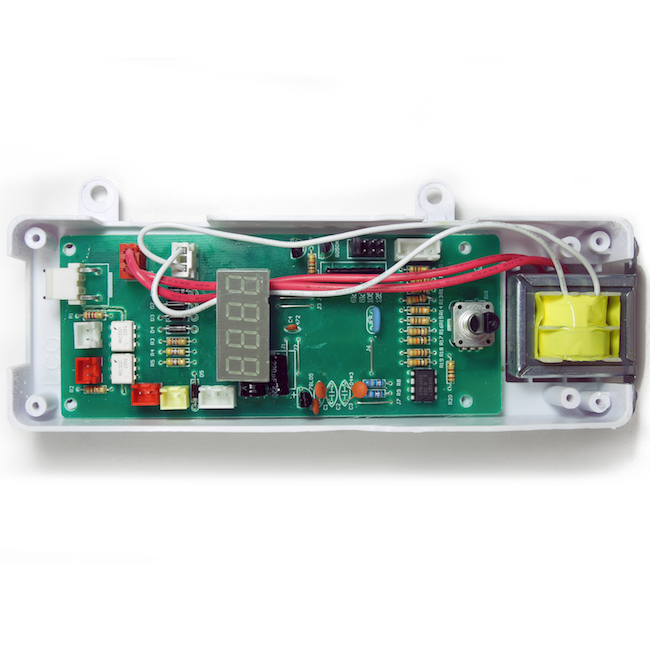

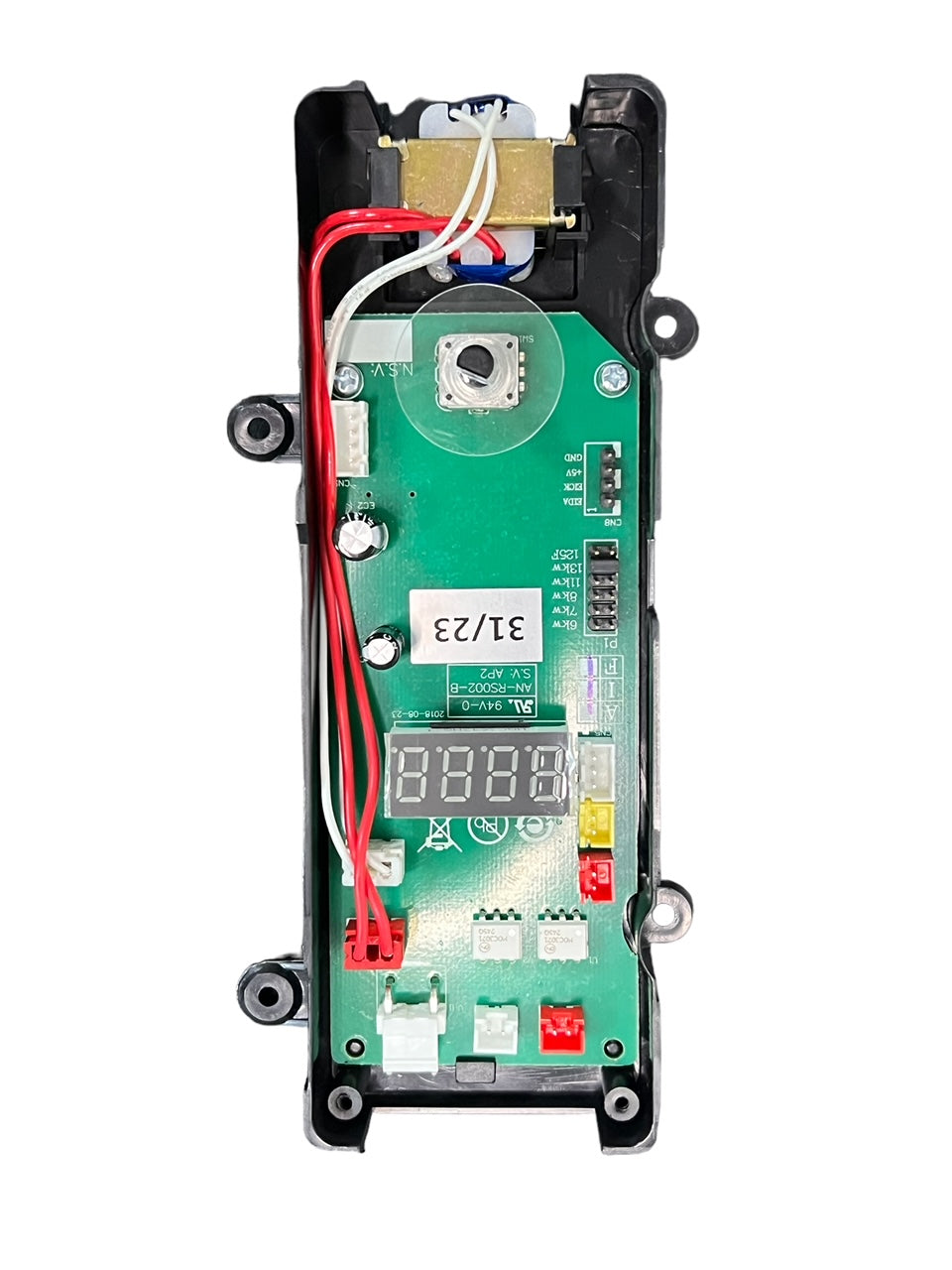

The HA-P024 control board is designed with simplicity in mind, ensuring an easy troubleshooting process for users. Not only does it offer uncomplicated diagnostics, but we also provide the best end price and fastest shipping options, including Next Day Air. Follow these steps to efficiently diagnose any issues:

1. Check Power Supply: Ensure that the unit is receiving power at the terminal block. If power is present, proceed to the next step.

2. LED Display Check: When power is supplied, the LED display should illuminate when the temperature knob is turned to the desired setting. If the display fails to light up, it indicates a potential issue with the control board.

3. Replacement Recommendation: If the LED display does not illuminate at all, it's likely that the control board is faulty and needs replacement.

By following these simple steps, you can quickly determine if the HA-P024 control board requires attention and take appropriate action to resolve any issues.

Part Numbers

Ecosmart | CB NF SML

Eemax & Rheem | HA-P024-008 | HA-P024-011 | HA-P024-013

Compatible With

≈ Eemax HomeAdvantage HA008240,HA011240, HA013240
≈ Ecosmart ECO08, ECO11
≈ Eemax EEM24008,EEM24011, EEM24013
≈ Rheem RTEX-08, RETEX-11, RTEX-13
≈ Rheem RETEX-08, RETEX-11,RETEX-13
≈ Richmond RMTEX-08, RMTEX-11, RMTEX-13
