Heating Element- HE 80240

Sale price $52.99 Regular price $57.99

Shipping calculated at checkout.

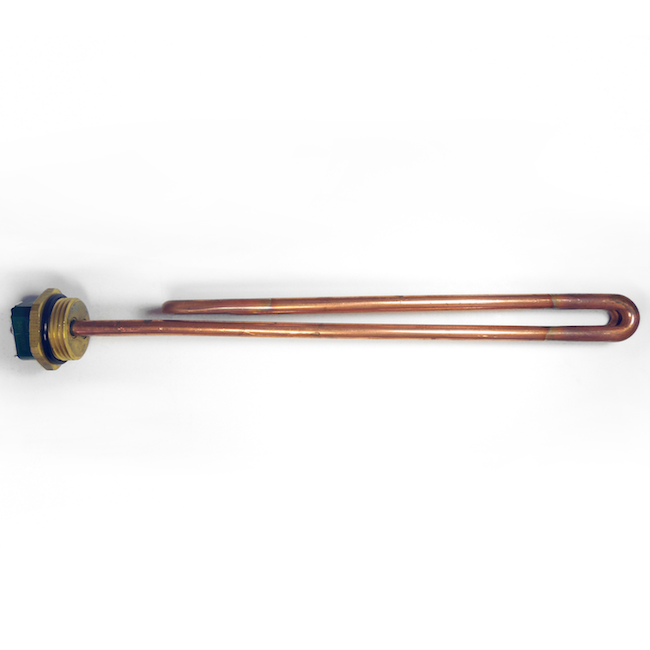

Ecosmart 8Kw 240v Heating Element

8000 watt at 240 volts heating element for the EcoSmart ECO 24 tankless water heater. Also compatible with other manufacturers' heating elements with the same specs.

Other Compatible Units:
≈ iHeat/Drakken AHS24D, AH24
≈ Eemax HA024240, PR024240, EEM24024
≈ Rheem RTEX-24, RETEX-24
≈ Richmond RMTEX-24

All the above listed 24kW heaters use three elements.

Specifications

• O-Ring included
• Voltage rating: 220 to 240 Volts
• Power rating is 8000 Watts at 240V
• Plug type: Screw-in
• Sheath material: Copper
• Length of the copper anode element material: 13 inches (NOT including the brass threads)
• Length from end of brass plug with threads to end of element "U" turn: 13.5 inches (including the brass threads)
• Length of the entire item, from the screws at bottom of plastic plug to the end of element "U" turn: 14.25 inches
• Weight of item not including packaging: 15.2 ounces
• Certifications and approvals: UL, CSA
